Technical Specification Table
Sizing Standard | Imperial Size | Dash Size | Nominal Diameter | Inner Diameter (ID) | Wire Reinforcement | Primary Applications |
1/2 Inch | 1/2" | -08 | DN15 | ~13 mm | 1W / 2W | Pneumatic tools, paint sprayers, small compressor outlets |
3/4 Inch | 3/4" | -12 | DN20 | ~19 mm | 1W / 2W | Workshop branch lines, high-flow impact wrenches |
1 Inch | 1" | -16 | DN25 | ~25 mm | 2W | Rotary screw compressor main discharge, mainline manifolds |
1-1/2 Inch | 1-1/2" | -24 | DN40 | ~38 mm | 2W | Heavy-duty industrial compressor lines, air receiver tanks |

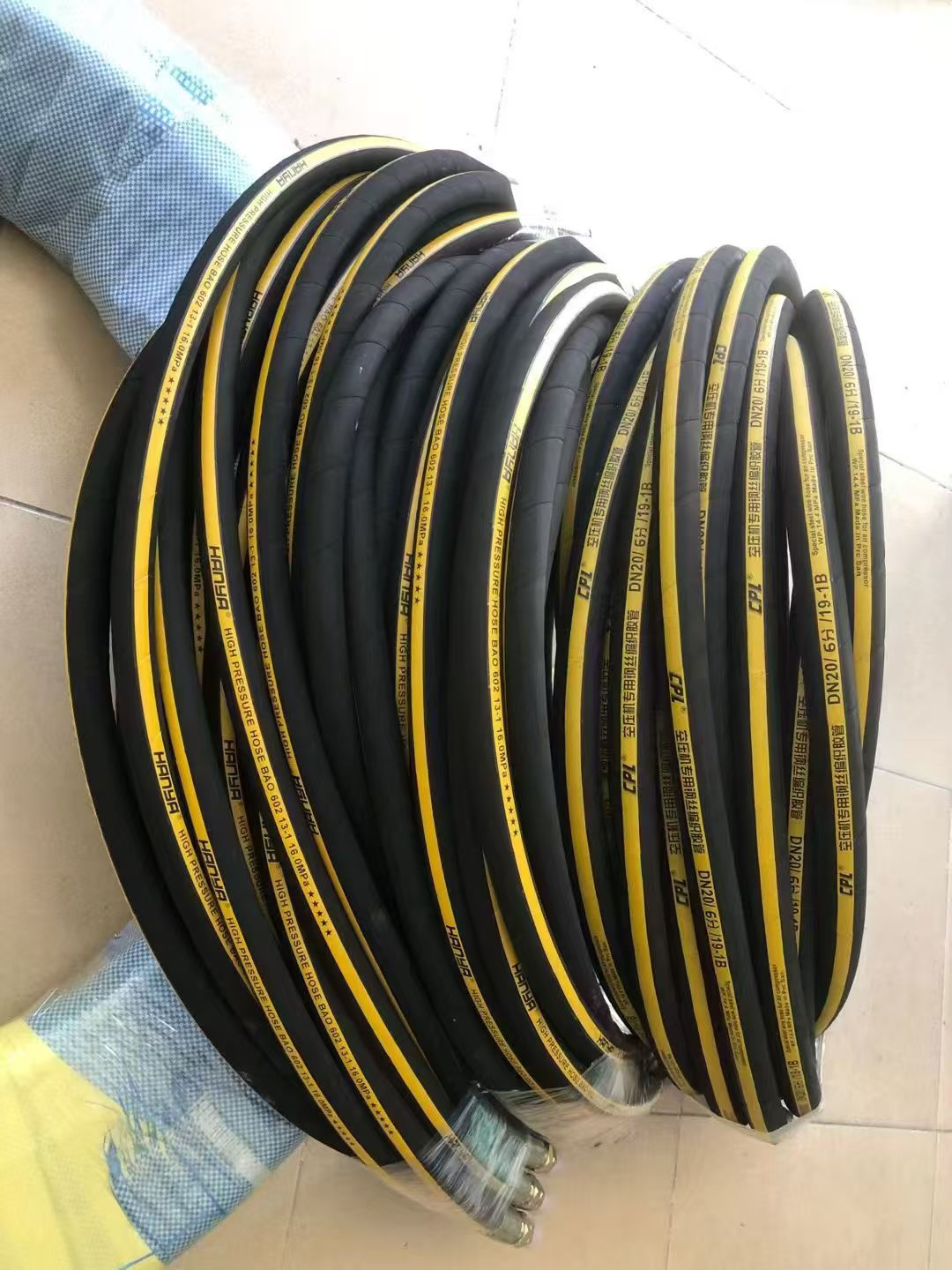

High-Pressure Steel Wire Braided Air Compressor Hose
Engineered for the demanding environments of heavy-duty air compressor systems. Available in standard sizes: 1/2", 3/4", 1", and 1-1/2", making it perfect for rotary screw and piston compressor discharges, receiver tanks, and main distribution lines.
Oil & Heat Resistant: Premium NBR inner tube withstands hot, oil-laden compressed air without degrading.
High-Tensile Strength: Braided steel wire layers (1W/2W) offer extreme pressure ratings and blow-out prevention.
Vibration Absorption: Absorbs intense pump pulsations, protecting your rigid piping from cracking.
